Usage: Used for the separation of finished products and returned materials
Production capacity: 1- 50 t/h
Dip Angle: 2°-2.5 °
Rotary Speed: 11.5-22 r/min
Applicable materials: NPK compound fertilizer and compost organic manure materials
Rotary screening equipment is a common equipment in the production of organic and compound fertilizer , which is mainly used for the seperation of the finished product and the return material, and also can realize the grading of the finished product, so that the finished product can be evenly classified . The combination screen, easy maintenance and replacement , the machine has the advantages of simple structure, convenient operation, stable operation.
The main technical parameters are shown in the table below:
|
Model |
Cylinder | Rotary speed | Angle of dip | Power | Output | Dimensions | Weight | |
| Diameter | Length | L×W×H | ||||||
| mm | mm | r/min | ° | kw | t/h | m | t | |
| GS1.0×3.0 | 1000 | 3000 | 22 | 2-2.5 | 2.2 | 1-3 | 3.5×1.4×2.2 | 1.5 |
| GS1.2×4.0 | 1200 | 4000 | 16 | 2-2.5 | 4 | 2-4 | 5.2×0.6×2.4 | 2.3 |
| GS1.2×4.5 | 1200 | 4500 | 17 | 2-2.5 | 4 | 3-5 | 5.7×1.6×2.4 | 2.5 |
| GS1.5×5.0 | 1500 | 5000 | 14 | 2-2.5 | 4 | 5-10 | 6.9×1.9×3.0 | 3.8 |
| GS1.6×6.0 | 1600 | 6000 | 12 | 2-2.5 | 11 | 10-20 | 7.3×2.0×3.0 | 4.7 |
| GS1.8×6.5 | 1800 | 6500 | 11.5 | 2-2.5 | 11 | 20-50 | 9.0×2.2×3.2 | 6.0 |

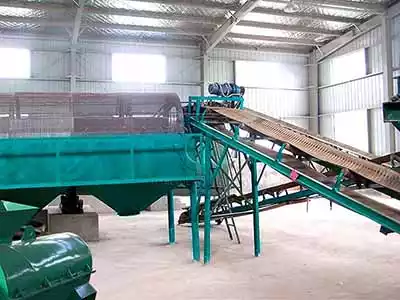

Fertilizer screening machine in the fertilizer granules production line:
Package : wooden package or full 20GP/40HQ container
Create a simple and convenient service experience for you anytime, anywhere.
Granular organic fertilizer production project of 200000 tons per year
Time: 2023.04
Area: South Africa
