Usage: Mixing of organic compound fertilizer materials
Production capacity: 1-40t/h
Product Highlights: The mixing blade has good wear resistance and long service life
Applicable materials: Compost organic manure or compound fertilizer powder
This series of products is mainly used for spraying wet mixing and conveying powdery materials. This product uses two helical blade shafts to evenly stir and transport powdery materials, and the humidity can be controlled by a manual regulating valve; it meets the requirements for suitable transportation. This series of products is also suitable for humidifying mixers and transporting materials containing solid particles in chemical, mining and other departments.
The main technical parameters are shown in the table below:
| Model
ZYQ-QZ |
Speed reducer
JZQ |
Motor
(Y series) |
Spindle speed
(Y/mm) |
Rotary speed
(mm) |
Capacity
(T/H) |
Weight
(KG) |
| 400 | 400-1V-2 | Y160M-4-11 | 52 | 400 | 20 | 2350 |
| 450 | 500-1V-2 | Y160L-4-15 | 52 | 450 | 25 | 2620 |
| 500 | 500-1V-2 | Y180M-4-18.5 | 53 | 500 | 30 | 2980 |
| 550 | 650-1V-2 | Y180L-4-22 | 53 | 550 | 35 | 3450 |
| 600 | 650-1V-2 | Y200L1-4-30 | 52 | 600 | 40 | 3850 |
| 650 | 750-1V-2 | Y225S-4-37 | 52 | 650 | 45 | 4260 |

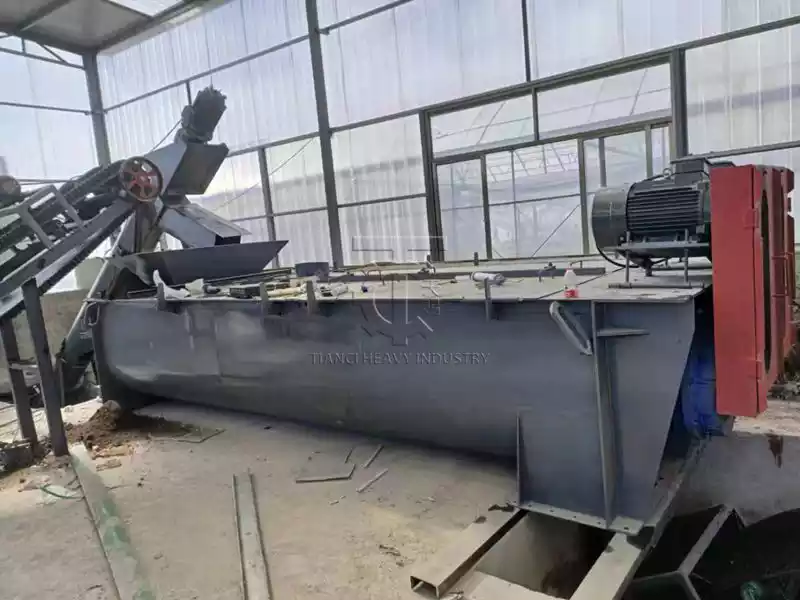

Double shafts mixing machine in the fertilizer production line:
Package : wooden package or full 20GP/40HQ container
Create a simple and convenient service experience for you anytime, anywhere.
Granular organic fertilizer production project of 200000 tons per year
Time: 2023.03
Area: South Africa
