Usage: Conveying materials for the production line
Production capacity: 9- 360 m³/h
Bandwidth: 300-800 mm
Applicable materials: It is widely used in agriculture, building materials, chemical industry, metallurgy and other work sectors.

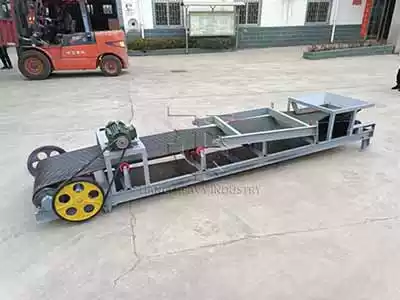

Belt conveyor applicable to conveying bulk density is less than 1.67/t/m³, easy to dig the powdery, granular and small shape, small pieces of low-abrasive materials and bagged materials, such as coal. gravel, cement, fertilizer,grain,etc.. The temperature of the material being sent is less than 60°. The captain and assembly form can be determined according to the user’s requirements. The transmission can be either an electric drum or a drive device with a drive frame. It is used in the transportation and production lines of mining, metallurgy, chemical, foundry, building materials and other industries, as well as hydropower station construction sites and ports.
The main technical parameters are shown in the table below:
| Model | Belt width | Belt speed | Inclination angle | Conveying length | Conveying capacity | Power |
| GD-B400 | 400 | 0.8-2.5 | 0-20° | 2-100 | 30-50 | 1.5-15 |
| GD-B500 | 500 | 0.8-2.5 | 0-20° | 2-100 | 40-80 | 1.5-22 |
| GD-B600 | 600 | 0.8-2.5 | 0-20° | 2-100 | 50-120 | 2.2-30 |
| GD-B650 | 650 | 0.8-2.5 | 0-20° | 2-100 | 60-150 | 3.2-45 |
| GD-B800 | 800 | 0.8-2.5 | 0-20° | 2-100 | 80-200 | 4.0-75 |
| GD-B1000 | 1000 | 0.8-2.5 | 0-20° | 2-100 | 120-300 | 4.0-100 |
Belt conveyor in the fertilizer production line:
Package : wooden package or full 20GP/40HQ container
Create a simple and convenient service experience for you anytime, anywhere.
Granular organic fertilizer production project of 200000 tons per year
Time: 2023.04
Area: South Africa
